Product Introduction

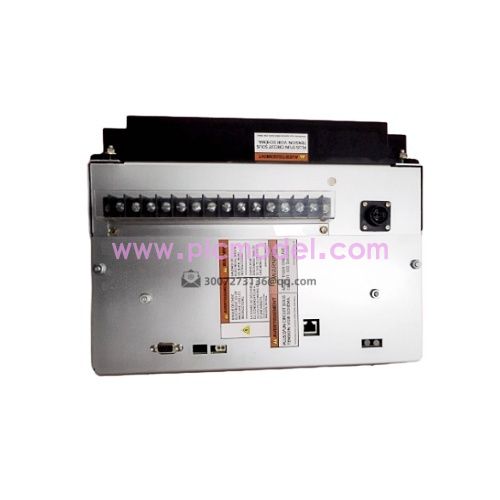

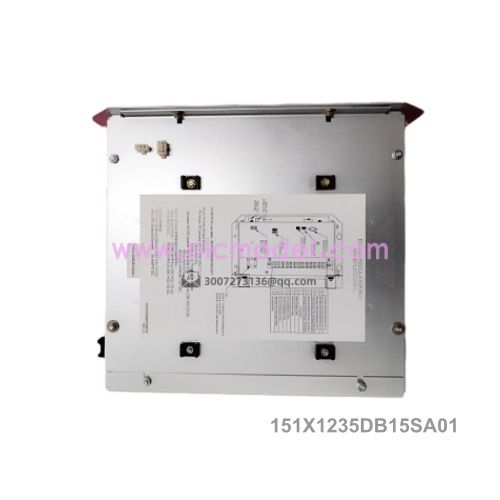

GE 151X1235DB15SA01 is a high-performance industrial control module manufactured by General Electric,serving as a core component of the GE Mark VI gas turbine and industrial control system.Designed for harsh industrial environments,it features high-precision signal processing,high-speed data communication,and stable control output.It is mainly used in large rotating machinery,process control,and automation systems in power,energy,petrochemical,and other fields,providing reliable control,monitoring,and protection functions.



Main Functions



Core Control Processing:Acts as the control core of the Mark VI system,executing complex control algorithms(e.g.,PID)to achieve precise regulation of gas turbines,generator sets,and other equipment.



High-Speed Signal Acquisition:Supports multi-channel digital/analog signal input,collecting real-time data from field sensors and actuators to ensure fast and accurate control response.



Multi-Protocol Communication:Integrates industrial buses such as Ethernet/IP and Modbus RTU,enabling data exchange and remote monitoring with host computers,PLCs,and DCS systems.



Fault Diagnosis&Protection:Built-in real-time status monitoring,overvoltage/overcurrent protection,and abnormal alarm functions to quickly locate faults and trigger safety protection actions.



Modular Expansion:Compatible with GE series I/O modules and communication components,supporting flexible system expansion to adapt to control scenarios of different scales.



Specification Parameters



Product Type:Industrial Control Module(Mark VI System Board)



Compatible Systems:GE Mark VI,EX2100e Gas Turbine Control Systems



Operating Voltage:24V DC



Operating Temperature:-20℃~+60℃



Communication Interfaces:Ethernet/IP,Modbus RTU,DeviceNet



I/O Features:Multi-channel digital/analog channels,supporting high-speed signal acquisition and control output



Protection Class:IP20(rack mounting)



Mounting:Standard rack/PCB mount



Dimensions:Approx.178mm×105mm×25mm



Certifications:UL,CE,FCC



Application Features



Industrial-Grade Stability:Uses high-spec components and anti-interference design,adapting to harsh conditions such as high temperature,humidity,and strong electromagnetic interference.



High Control Precision:Microprocessor architecture with fast computing speed and low signal distortion,meeting high-precision process control requirements.



Strong Compatibility:Seamlessly integrates into the GE automation ecosystem and supports third-party equipment integration,reducing system modification difficulty.



Easy Maintenance:Supports hot-swapping and online diagnosis,reducing downtime for maintenance and improving system availability.



Wide Application:Suitable for high-reliability scenarios such as gas power generation,oil and gas transportation,chemical metallurgy,and water treatment.



Summary



GE 151X1235DB15SA01 is a critical core module of the Mark VI control system.With high stability,strong computing power,and rich communication interfaces,it is the preferred solution for heavy industrial equipment control.Its features of precise control,comprehensive protection,and flexible expansion effectively ensure continuous and stable operation of key processes in power and energy industries,balancing safety,efficiency,and maintainability to provide reliable support for industrial automation and energy control.
