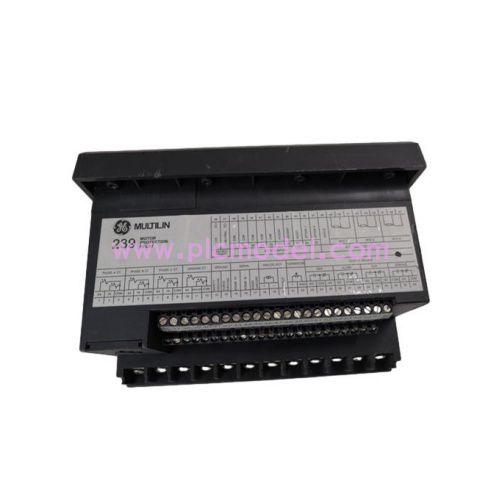

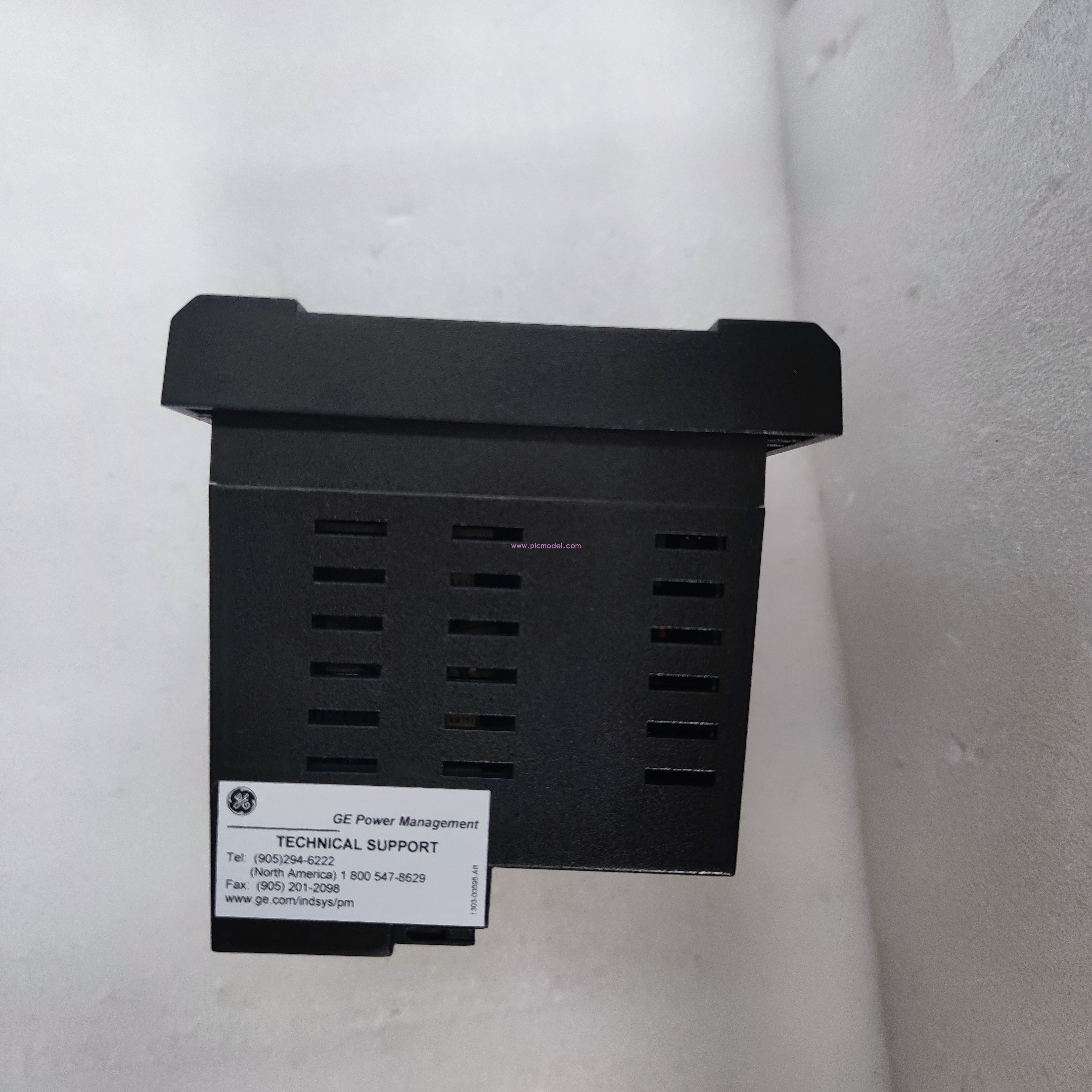

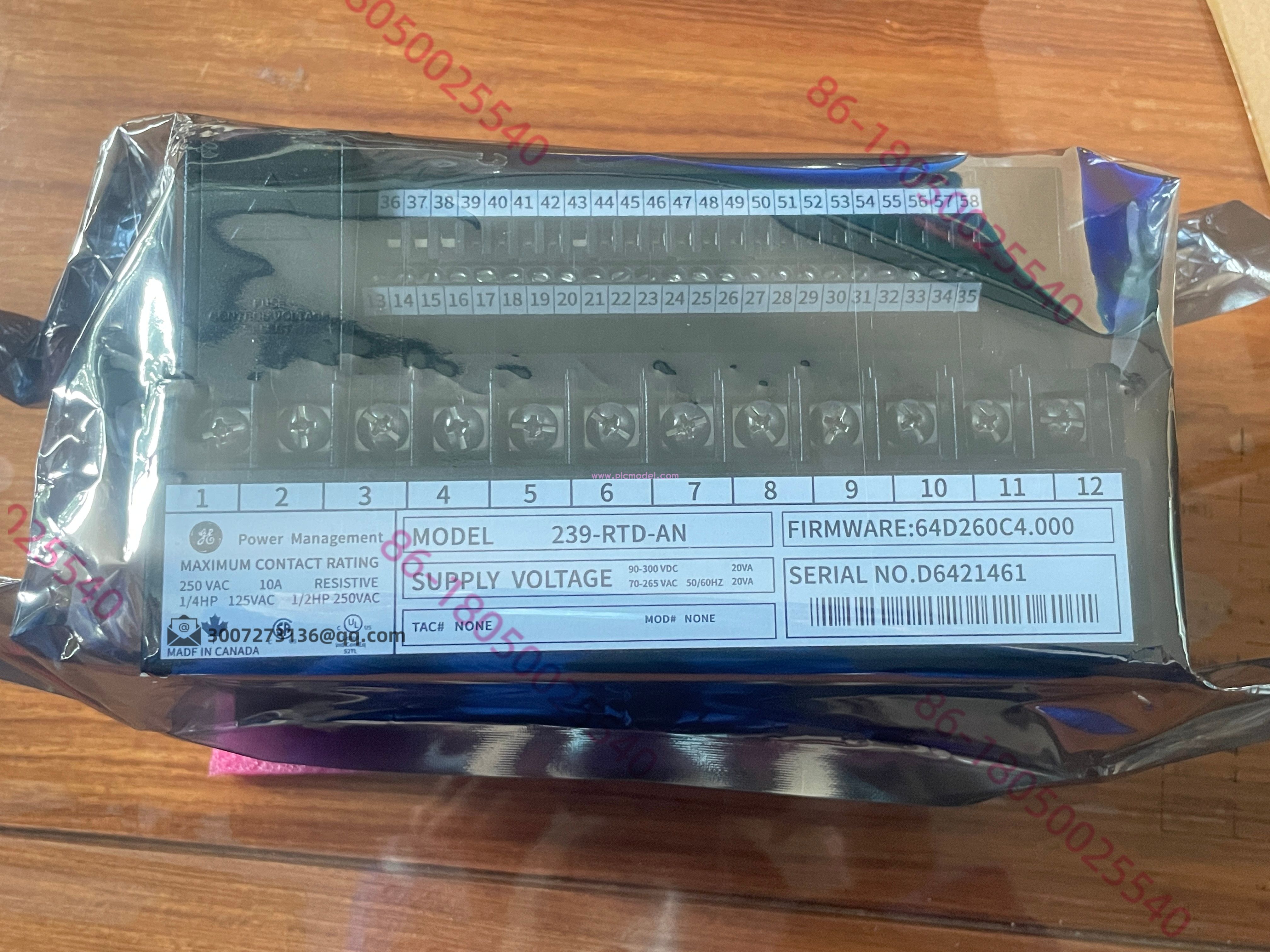

GE Multilin 239-RTD-AN is a high-performance digital motor protection relay belonging to the GE Multilin 239 series.It is specifically designed for small to medium-sized three-phase AC motors and related machinery,providing comprehensive automated protection by monitoring current,voltage,and temperature.

The suffixes in 239-RTD-AN have specific meanings:

AN:Indicates the model features an Analog Output function,converting monitored parameters(such as current or temperature)into 4-20mA or 0-1mA signals for transmission to PLCs or DCS systems.

This compact device is typically mounted on motor starters or control cabinet door panels.

Key Features

Thermal Overload Protection:Core function.Utilizes advanced thermal modeling algorithms to calculate the motor's Thermal Capacity Utilization(TCU),preventing winding burnout due to overheating.

Temperature Monitoring:Supports 3 programmable RTD inputs(compatible with Pt100 platinum resistors,Ni120 nickel resistors,etc.)to monitor motor stator or bearing temperatures.

Electrical Fault Protection:

Short Circuit Protection:Instantaneous tripping.

Ground Fault Protection:Monitors leakage caused by insulation failure.

Current Unbalance Protection:Prevents rotor overheating due to single-phase operation or phase imbalance.

Mechanical Protection:

Mechanical Jam:Detects sudden load lock-up.

Reverse Rotation Protection:Monitors current phase sequence.

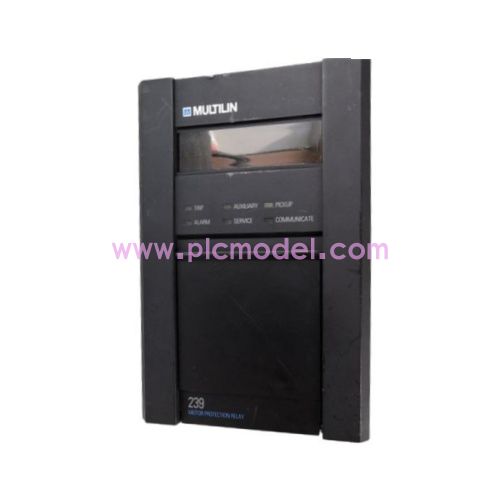

Status Monitoring&Communication:Features a backlit LCD display with Modbus RTU communication(RS485 interface)for remote reading of real-time current,temperature,and the last 5 fault records.

Application Scenarios

This relay is widely used in industrial sectors demanding high reliability:

Pumps and Fans:Water treatment,chemical processing,HVAC systems.

Conveying Equipment:Mining,logistics automation,conveyor belt monitoring.

Compressors:Oil and gas,manufacturing plants.
