1.Product Introduction

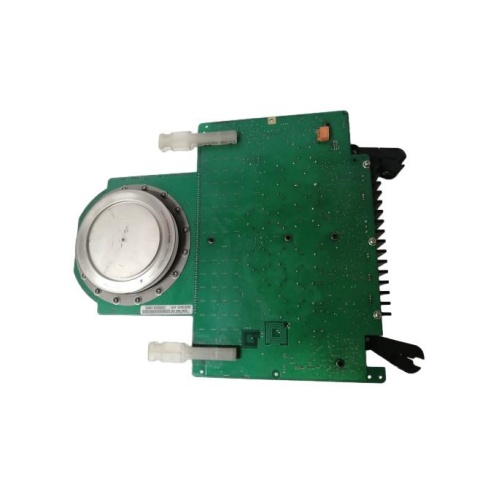

The ABB 3BHL000392P0101 is a high-performance Integrated Gate Commutated Thyristor(IGCT)Module.It is often associated with the IGCT module body,which has a model number of 5SHX1060H0001,and in some applications,it may be used in conjunction with the 3BHB003230R0101 driver board/power board.

Manufacturer:ABB

Product Type:IGCT Module(or Power Module/IGBT/IGCT Module)

Application Areas:Primarily used in high-voltage,high-power electronics applications,such as:

Medium Voltage Drives(e.g.,ABB ACS1000 drive)

Power Generation

Renewable Energy Systems

Motor Control

Traction Systems

2.Key Features

The IGCT module serves as the main power switching component in power drive systems.Its primary functions and features include:

High Voltage and High Current Handling Capability:Designed for high-power applications,supporting high rated voltages(e.g.,3300V or 6kV)and high rated currents(e.g.,1060A/1200A).

High Efficiency and Fast Switching Performance:IGCT technology combines the high current capacity of a thyristor and the low conduction losses of a GTO with controllable turn-off capability,enabling efficient and fast switching of current and voltage.

High Reliability and Robust Design:Built with durable materials and advanced thermal features to withstand harsh industrial environments and prolonged operational use,ensuring stable performance.

Precise Control Capability:As the main power switch,it is critical for precise control of current and voltage,essential for achieving fine control in applications like motor drives.

Comprehensive Protection Mechanisms:Typically includes built-in mechanisms like overcurrent and overheat protection to swiftly cut off power in abnormal conditions,safeguarding the equipment and system integrity.

3.Summary

The ABB 3BHL000392P0101 IGCT module is an advanced,reliable,and highly efficient power component developed by ABB for medium-voltage drives(like the ACS1000)and other high-power electronics systems.Due to its excellent electrical performance,high voltage/current handling,and robust switching characteristics,it plays a core role in industrial applications requiring high reliability and precise control.
