5SHY4045L0006 is a high-performance IGBT (Insulated Gate Bipolar Transistor) module manufactured by ABB, part of its power semiconductor product line.

This type of module serves as a core component in modern power electronic equipment such as inverters and high-power supplies, enabling highly efficient power conversion and control.

Primary Functions

The primary function of this IGBT module is to serve as a high-power, high-speed electronic switch, enabling precise control and conversion of electrical energy:

Power Switching (High-Speed Switching): Enables rapid, precise switching operations under high voltage and high current conditions.

Energy Conversion: Serves as a fundamental component in the following circuit topologies:

Inverter: Converts direct current (DC) to alternating current (AC) for driving AC motors (frequency converters) or grid connection.

Rectifier: Converts alternating current to direct current.

Chopper: Regulates DC voltage.

Current and Voltage Control: Precisely modulates output current and voltage waveforms by controlling the IGBT's switching frequency and duty cycle (PWM pulse width modulation).

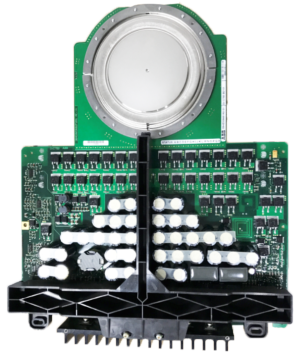

ABB Commutated Thyristor 5SHY4045L0006 3BHB030310R0001 IGCT MODULE.Power exciter control module ACS 6000 Active Rectifier Unit (ARU)Self-commutated, 6-pulse,3-level voltage source inverterwith lGCT technology.

ACS 6000IGCT technology for maximal loadability in combination with minimal part count.Active Rectifier Unit (ARU)Self-commutated, 6-pulse,3-level voltage source inverterwith lGCT technology.
