Product Overview

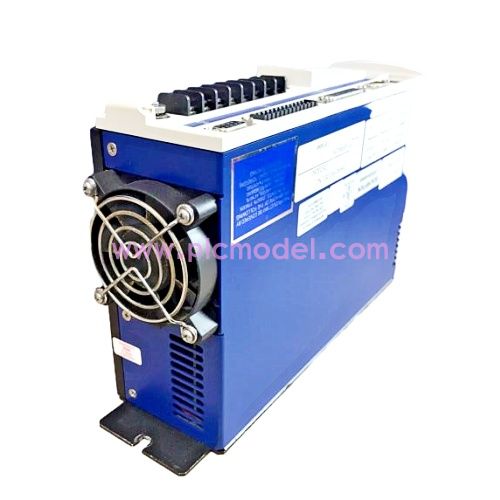

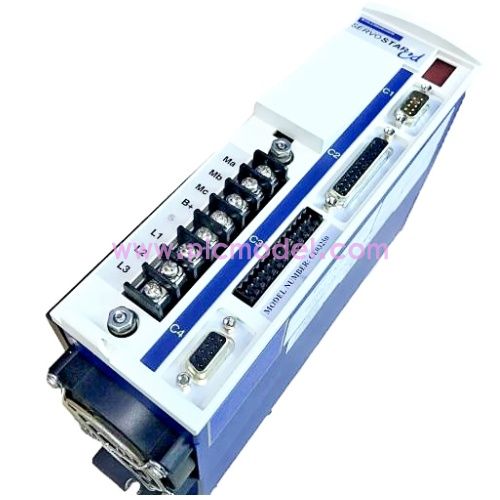

The Kollmorgen CE03250 is a servo drive (Servo Drive) from the Servostar CD series produced by Kollmorgen. Servo drives are the core components of servo systems, used to control servo motors and achieve precise control of position, speed, and torque.

As part of this series, the CE03250 is renowned for its compact design, powerful functionality, and exceptional performance, making it widely used in industrial automation applications that demand high precision and rapid response in motion control. This product is typically used in conjunction with Kollmorgen's servo motors to form a complete servo motion control solution.

Key Features

Precise Motion Control: The CE03250 can precisely control the rotational angle, speed, and torque of the servo motor. It supports multiple control modes, including torque mode, speed mode, and position mode, enabling it to handle various complex motion control tasks.

High-Performance Control Algorithms: The drive employs fully digital control loops, delivering high dynamic response and control precision. It also features low-pass and notch filters to effectively suppress mechanical resonance, ensuring smoother motor operation.

Multiple feedback interfaces: Supports various motor feedback devices such as incremental encoders to ensure precise position and speed feedback.

Comprehensive protection features: Built-in multiple protection mechanisms prevent damage to the device and motor under abnormal conditions, such as:

Overload protection: Prevents motor damage caused by prolonged overload.

Overvoltage/undervoltage protection: Monitors power supply voltage to ensure stable operation.

Short-circuit protection: Provides protection when phase-to-phase short circuits occur at the output terminals.

Over-temperature protection: Monitors the temperature of the drive and motor to prevent overheating.

Flexible communication and configuration: Supports RS-232 or RS-485 serial interfaces for convenient communication with upper-level computers (such as PLCs or motion controllers). Users can configure parameters, program, and diagnose faults using specialized software like Motionlink.

Compact and durable design: Features a robust metal housing with a compact size to save installation space. The design meets industrial environment standards and has excellent electromagnetic interference (EMI) resistance.
