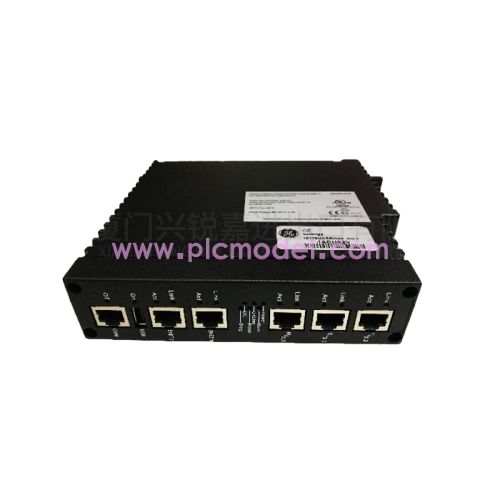

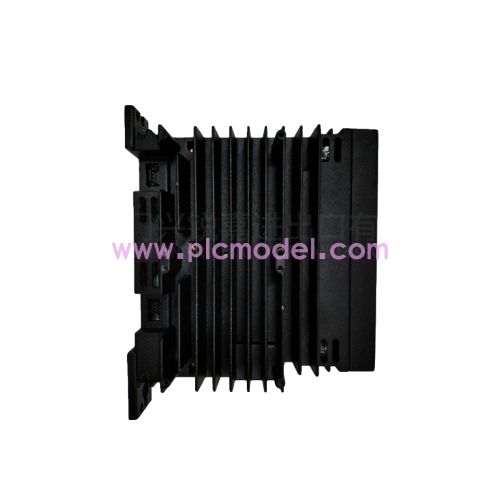

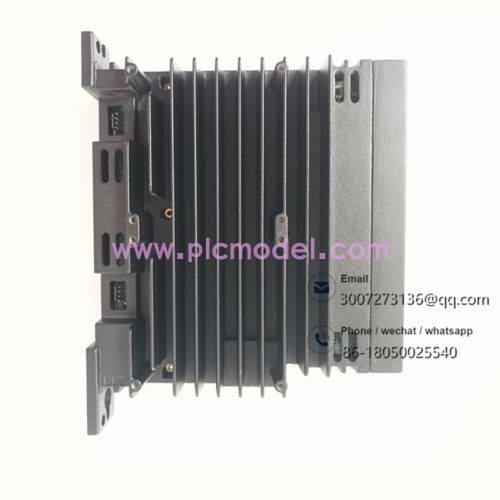

The IS420UCSBH1A is a standalone high-performance controller. Unlike earlier rack-mounted controllers, the UCSB features a ruggedized compact design for direct mounting on control cabinet backplanes. It operates a real-time operating system (RTOS) specifically engineered for real-time control in power plants, wind farms, and heavy industrial processes.

GE IS420UCSBH1A is a core component within the GE Mark VIe control system, defined as the UCSB Master Controller. It serves as the system's brain, responsible for executing complex control algorithms, processing logic, and managing the entire I/O network.

Key Features

Logic Execution: Runs control logic and protection algorithms developed using the GE ControlST software suite.

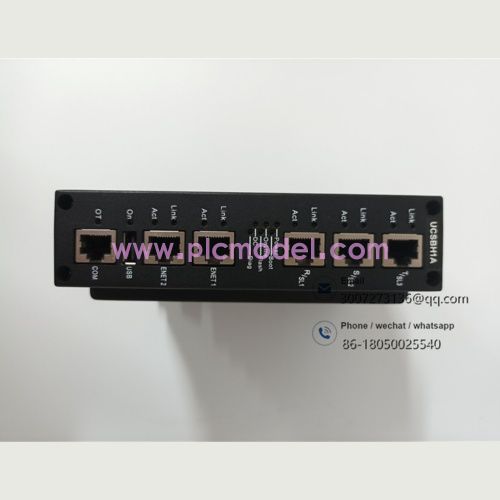

Network Management: Communicates with downstream I/O modules via three redundant IONet ports (Ethernet).

Redundancy Architecture Support: Supports Single, Duplex, or TMR (Time-Multiplexed Redundancy) configurations. In TMR mode, three controllers operate synchronously and vote to ensure extremely high system availability.

Synchronized Clock: Internally integrates IEEE 1588 Precision Time Protocol to ensure fully synchronized timestamps across distributed I/O nodes.

Diagnostics and Monitoring: Real-time monitoring of hardware health, CPU load, and communication quality.

Application Scenarios

This controller serves as the core control unit for GE Energy equipment:

Gas Turbines/Steam Turbines: Monitors speed, temperature, pressure, and executes servo control.

Wind Turbines: Manages pitch control, main control logic, and grid connection management.

Combined Cycle Power Plants: Coordinates plant-wide auxiliary equipment (BOP) control.
