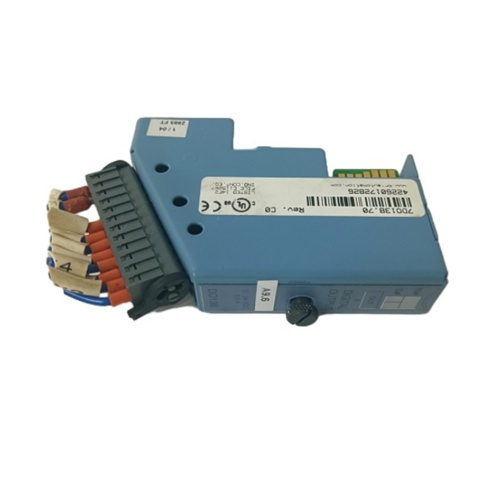

The B&R 7DO138.70 is a high-performance digital output module designed for use in industrial automation and process control. The main function of the module is to convert digital signals from the control system into switching signals for precise on/off control of electrical devices.
1.Product Features
High reliability: B&R 7DO138.70 module has high reliability and anti-interference ability, which can operate stably in harsh industrial environments.
Multi-channel output: The module provides 8 digital output channels, each with an output voltage of 24V DC and a current of 0.5A.
Flexible Configuration: The module supports a variety of communication protocols, including Ethernet interfaces, and is compatible with PLCs and controllers, making it easy to integrate into various automation systems.
Isolation protection: The module is equipped with anti-short-circuit and thermal overload protection to ensure safe operation even under abnormal condition
Installation: M8 pin connector is adopted for easy installation and maintenance.
2. Technical Parameters
Input voltage: 24V DC
Output current: 0.5A per channel
Operating temperature range: 0℃~55
Storage Temperature Range: -25℃~85
Humidity range: below 90% (no condensation)
Size: 119mm × 36mm × 124mm
3. Areas of application
B&R 7DO138.70 modules are widely used in manufacturing, chemical, food and packaging industries, especially playing an important role in process control and automated production lines. Its high performance and reliability make it an indispensable component in industrial automation systems.
4. Typical application scenarios
Motor control: to control the start and stop of the motor through digital output signals to realize precise speed and position control.
Solenoid valve control: used to control the switch of solenoid valve to realize precise control of fluid.
Sensor Signal Processing: Convert digital signals from sensors into switch signals for monitoring and controlling production processes.
5. Advantages
High performance: the module adopts advanced digital signal processing technology to ensure the accuracy and stability of the output signal.
Ease of use: the module has a simple design, easy to install, supports a variety of communication protocols, easy to integrate with other equipment.
Reliability: with anti-short-circuit and thermal overload protection to ensure safe operation even under abnormal conditions.
6. Summary
The B&R 7DO138.70 digital output module is ideal for industrial automation and process control due to its high performance, reliability and flexible configuration. Whether it is motor control, solenoid valve control or sensor signal processing, the module can provide reliable solutions to help customers realize efficient and stable production processes.
