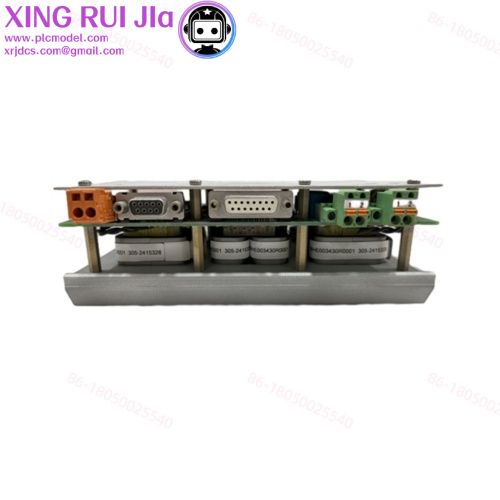

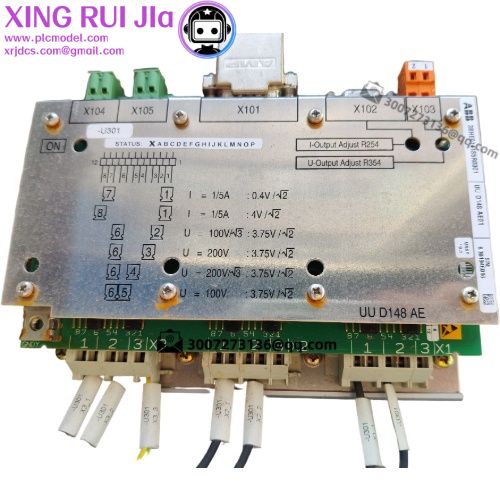

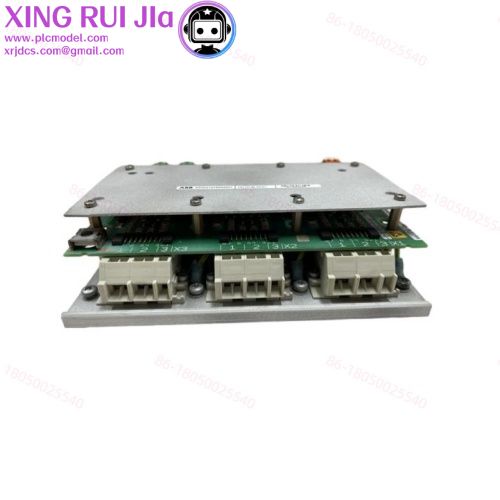

ABB UUD148AE01 (3BHE014185R0001) is a Universal I/O module for ABB Melody or Symphony Plus distributed control systems (DCS).

These modules play a critical role in industrial control systems, offering flexible configuration as Analog Inputs (AI), Analog Outputs (AO), Digital Inputs (DI), or Digital Outputs (DO). This versatility significantly simplifies system design and spare parts management.

In essence, the UUD148AE01 serves as an “interface card” connecting various field signals (e.g., temperature, pressure, switch status) to the control system while also transmitting control commands (e.g., adjusting valve position, starting motors) to field devices.

Key Features

Versatility: Its primary strength lies in versatility. A single module handles multiple signal types, reducing the need for diverse modules and simplifying spare parts inventory.

High Precision: As an analog processing module, it delivers high-accuracy measurement and control, ensuring precise process regulation.

High Reliability: As part of a DCS system, it is typically designed for rugged durability, capable of withstanding harsh industrial environments.

Fault Diagnosis: Built-in self-diagnostic functions monitor the health of both the module and connected devices, triggering alarms upon faults for rapid issue identification.

Modular Design: Its modular architecture allows for easy installation or removal from its rack, facilitating maintenance and replacement.

Application Scenarios

The ABB UUD148AE01 is primarily used in process industries demanding exceptional reliability, stability, and precision:

Power Industry: Deployed in boiler, turbine, and generator control systems within power plants to acquire and regulate signals from various sensors and actuators.

Oil & Gas: Utilized in refineries and natural gas processing plants to control and monitor diverse process parameters during production.

Chemical Industry: Employed in complex chemical reactions and production flows to precisely regulate variables such as temperature, pressure, and flow rate.

Water Treatment: Automates control of pumps, valves, and level sensors in large water treatment plants.

Usage

The UUD148AE01 is a specialized industrial control system component requiring operation by qualified professionals with relevant expertise:

Physical Installation: Mount the module into the corresponding rack slot of the ABB Symphony Plus system and connect it correctly to the Terminal Unit.

Wiring: Connect field device signal lines to the corresponding terminals on the Terminal Unit. This requires proper connection based on the module’s configuration (AI/AO/DI/DO).

System Configuration: Engineers must configure the entire DCS system using ABB’s dedicated software tools. This includes defining each channel function of the UUD148AE01 module (e.g., configuring as analog input or digital output) and associating it with control logic.

Commissioning and Maintenance: After system startup, comprehensive commissioning is required to ensure proper signal transmission and control logic operation. Perform routine maintenance and troubleshooting as needed.

Important Notice: Never attempt to install, operate, or repair such industrial equipment without professional training and authorization. Doing so may cause equipment damage, system failure, or even serious personal injury.
